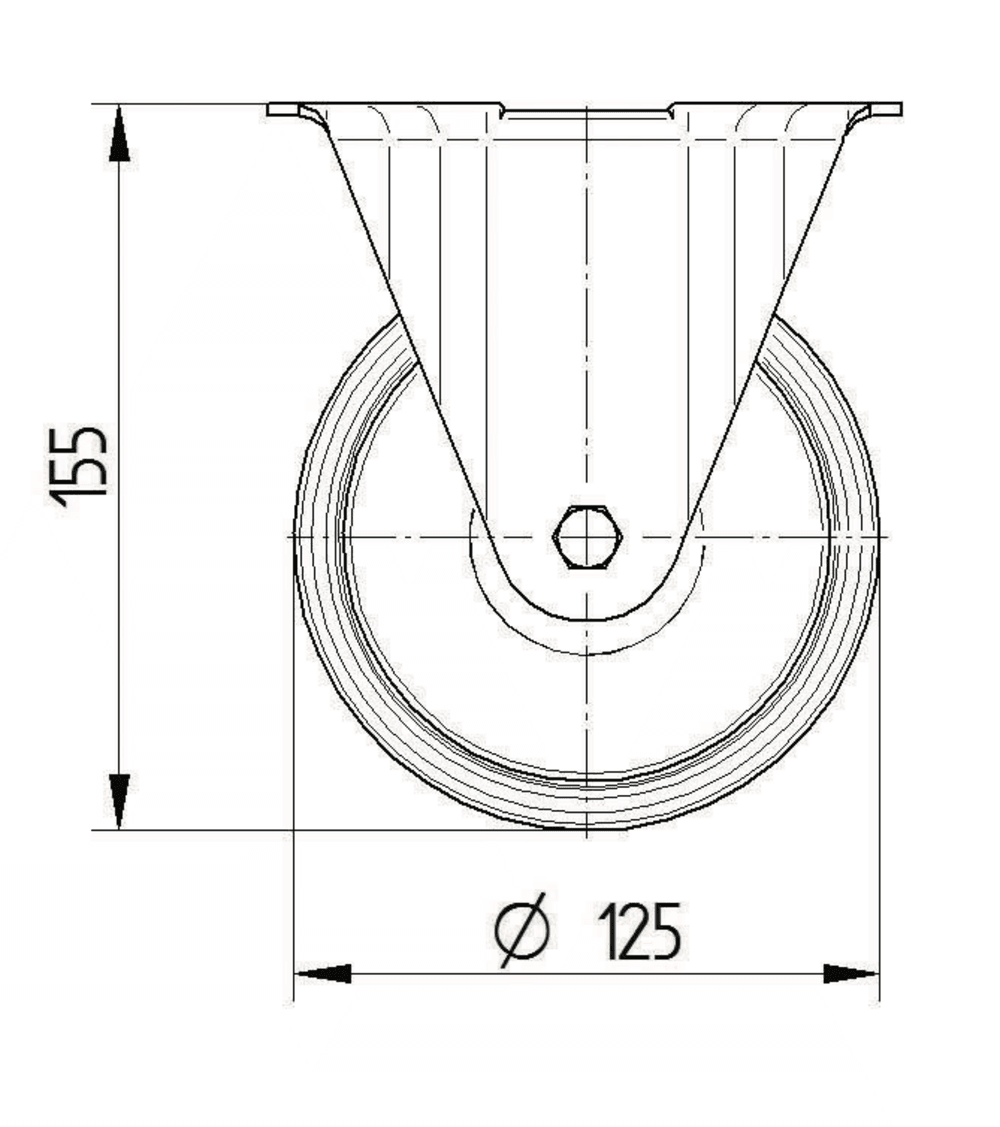

Fixed castor 125 mm
Ø125mm
500kg
fixed
Technical Specifications
Core attributes
TypeFixed castor
Overall width85 mm
Load capacity at 4 km/h250 kg
Load capacity Static500 kg
Overall height155 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-40 °C
Overall weight0.6 kg
Electric conductive✘
Fitting
Fitting typeSmall rectangular plate
Plate hole diameter9 mm
Plate hole length (Maximum)60 mm
Plate hole length (Minimum)77 mm
Plate hole width (Maximum)80 mm
Plate hole width (Minimum)77 mm
Plate length100 mm
Plate width85 mm
Housing
ColourStainless steel
Fork shapeBroad
Material forkStainless steel, heavy
Wheel
Hardness of tread (D)75 Shore D
Body materialPolyamide
Tread materialIdentical with wheel body
Tread width40 mm
Diameter125 mm
Body width40 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPlain bearing
Wheel colorNatural white
