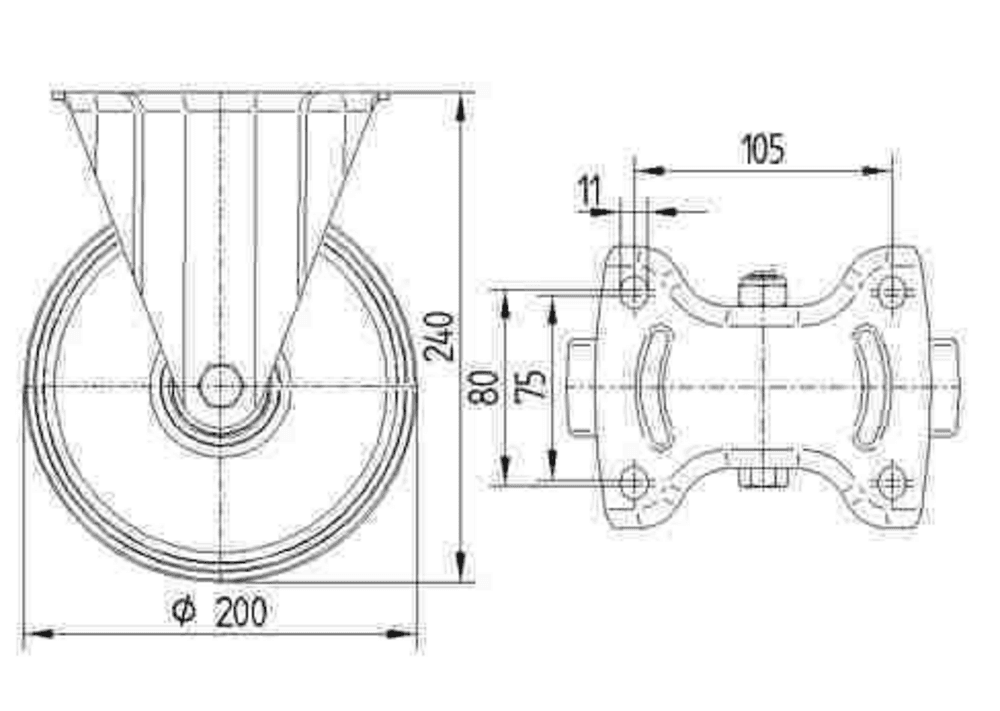

Fixed castor 200 mm
Ø200mm
700kg
fixed
Technical Specifications
Core attributes
TypeFixed castor
Overall width115 mm
Load capacity at 4 km/h350 kg
Load capacity at 6 km/h150 kg
Load capacity Static700 kg
Overall height240 mm
Temperature range (Maximum)60 °C
Temperature range (Minimum)-10 °C
Overall weight2.45 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeMedium rectangular plate
Plate hole diameter11 mm
Plate hole length (Maximum)80 mm
Plate hole length (Minimum)75 mm
Plate hole width (Maximum)105 mm
Plate hole width (Minimum)75 mm
Plate length140 mm
Plate width115 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, heavy
Swivel bearingTwo ball races
Wheel
Hardness of tread (A)92 Shore A
Hardness of tread (D)42 Shore D
Body materialAluminium
Tread materialPolyurethane, casted
Tread width50 mm
Diameter200 mm
Body width50 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPrecision ball bearing
Wheel colorMetallic
