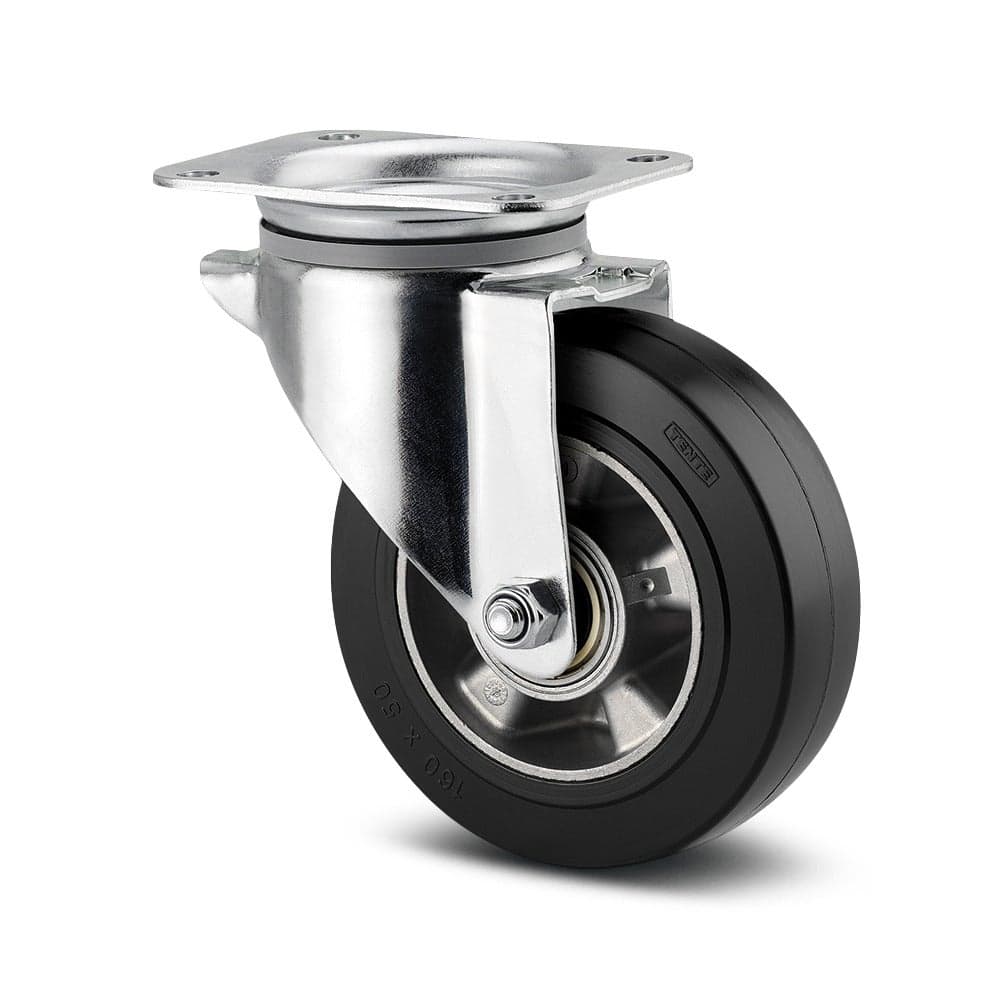

Swivel castor 200 mm
Ø200mm
700kg
swivel
Technical Specifications
Core attributes
TypeSwivel castor
Overall width96 mm
Load capacity at 4 km/h350 kg
Load capacity at 6 km/h250 kg
Load capacity Static700 kg
Overall height240 mm
Temperature range (Maximum)85 °C
Temperature range (Minimum)-20 °C
Overall weight3.24 kg
Electric conductive✘
Stainless✘

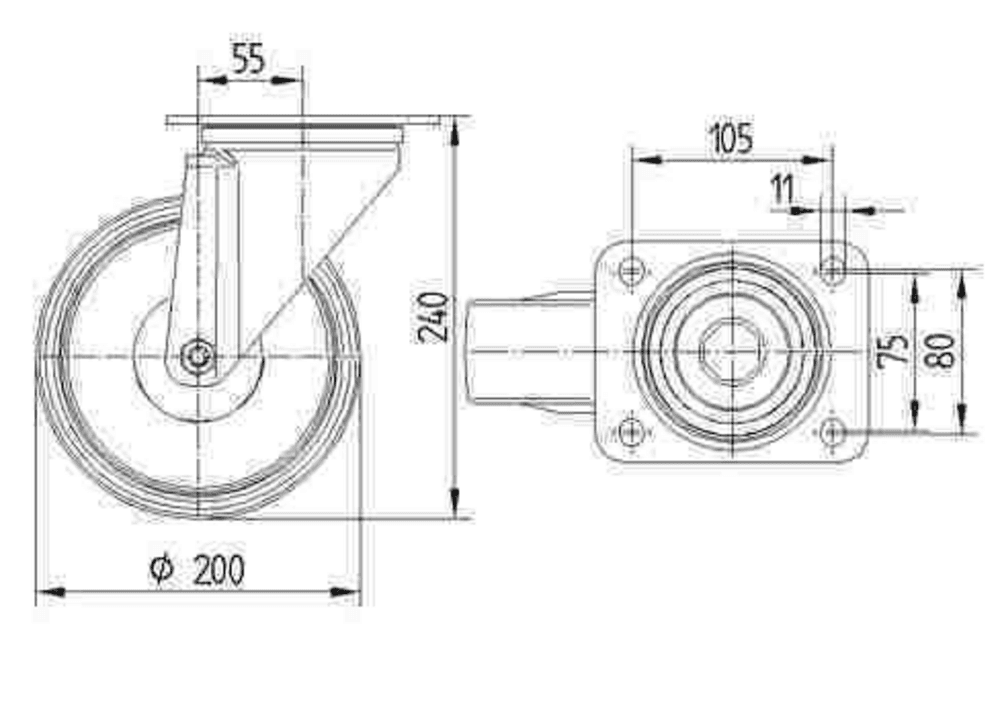

Fitting
Fitting typeMedium rectangular plate
Plate hole diameter11 mm
Plate hole length (Maximum)80 mm
Plate hole length (Minimum)75 mm
Plate hole width (Maximum)105 mm
Plate hole width (Minimum)75 mm
Plate length137 mm
Plate width105 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, heavy

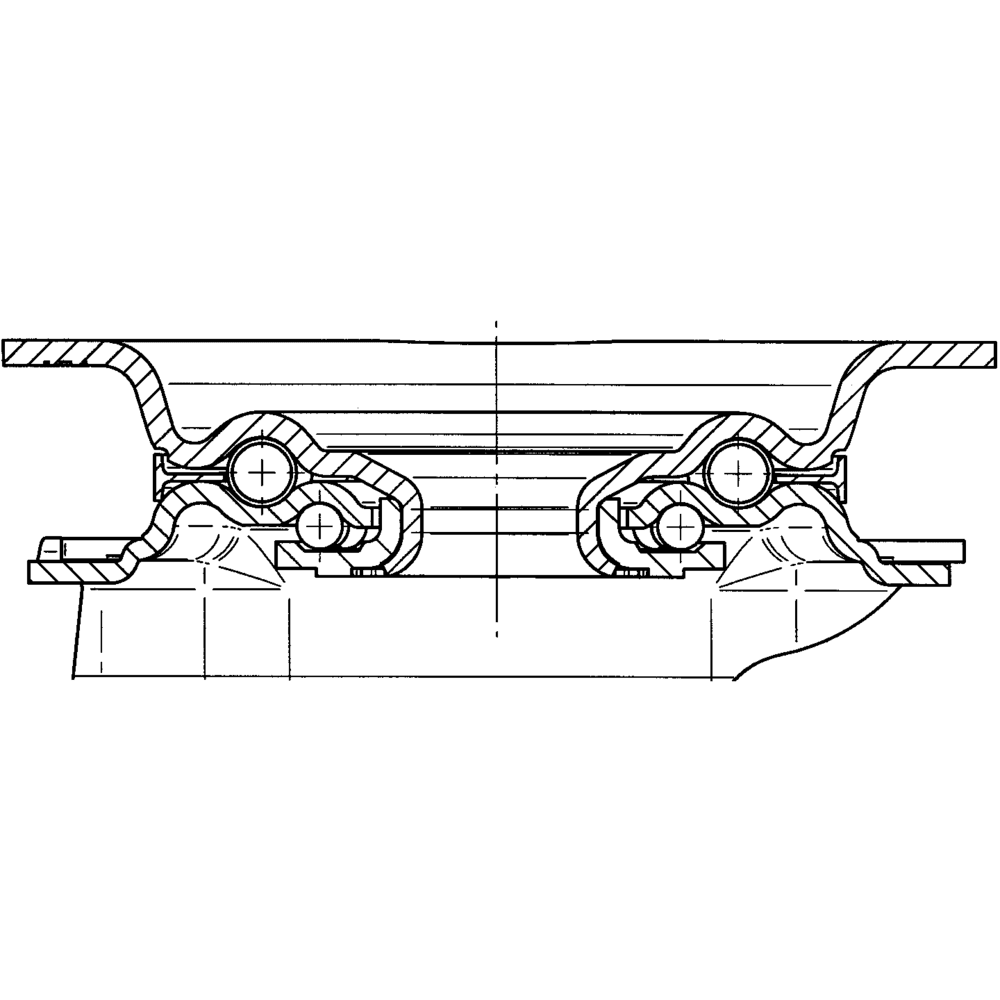

Swivel bearingTwo ball races
Dome diameter96 mm
Swivel interference310 mm
Offset55 mm
Swivel radius155 mm
Wheel
Hardness of tread (A)68 Shore A
Body materialAluminium
Tread materialElastic tire, black, vulcanized
Tread width50 mm
Diameter200 mm
Body width50 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPrecision ball bearing
Wheel colorMetallic
