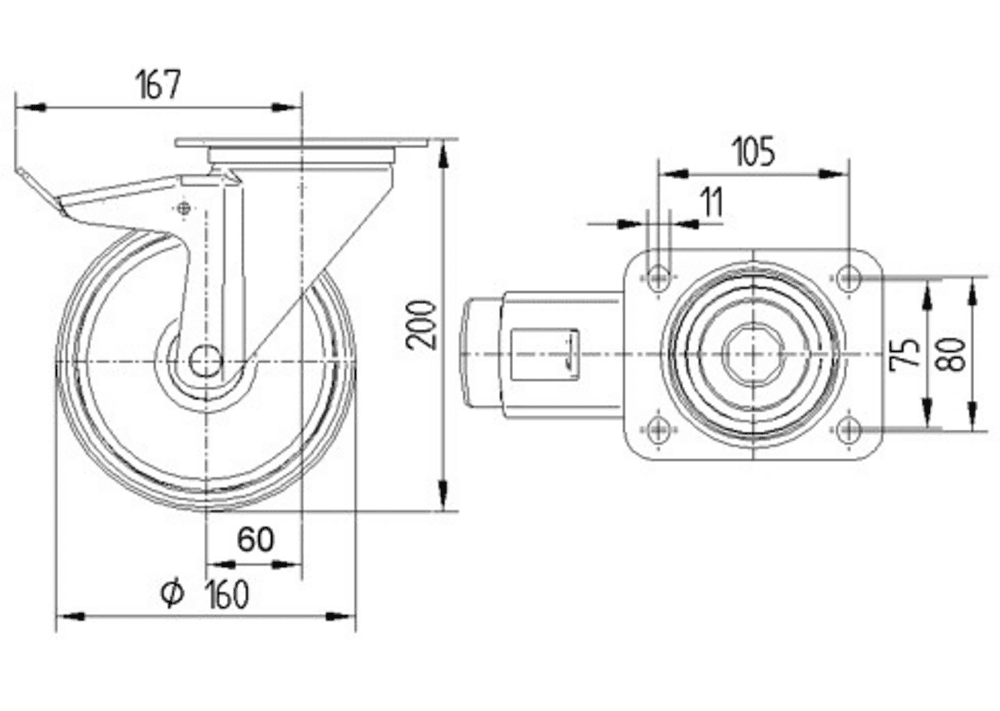

Swivel castor with total lock 160 mm
Ø160mm
1000kg
swivel_brake
Technical Specifications
Core attributes
TypeSwivel castor with total lock
Overall width96 mm
Load capacity at 4 km/h500 kg
Load capacity Static1000 kg
Overall height200 mm
Temperature range (Maximum)80 °C
Temperature range (Minimum)-40 °C
Overall weight2.14 kg
Electric conductive✘
Fitting
Fitting typeMedium rectangular plate
Plate hole diameter11 mm
Plate hole length (Maximum)80 mm
Plate hole length (Minimum)75 mm
Plate hole width (Maximum)105 mm
Plate hole width (Minimum)75 mm
Plate length137 mm
Plate width105 mm
Housing
ColourStainless steel
Fork shapeBroad
Material forkStainless steel, heavy
Swivel bearingTwo ball races
Dome diameter96 mm
Swivel interference334 mm
Offset60 mm
Swivel radius167 mm
Wheel
Hardness of tread (D)75 Shore D
Body materialPolyamide
Tread materialIdentical with wheel body
Tread width40 mm
Diameter160 mm
Body width40 mm
ThreadguardsWithout threadguard
AxleScrewed with nut
BearingPlain bearing
Wheel colorNatural white
