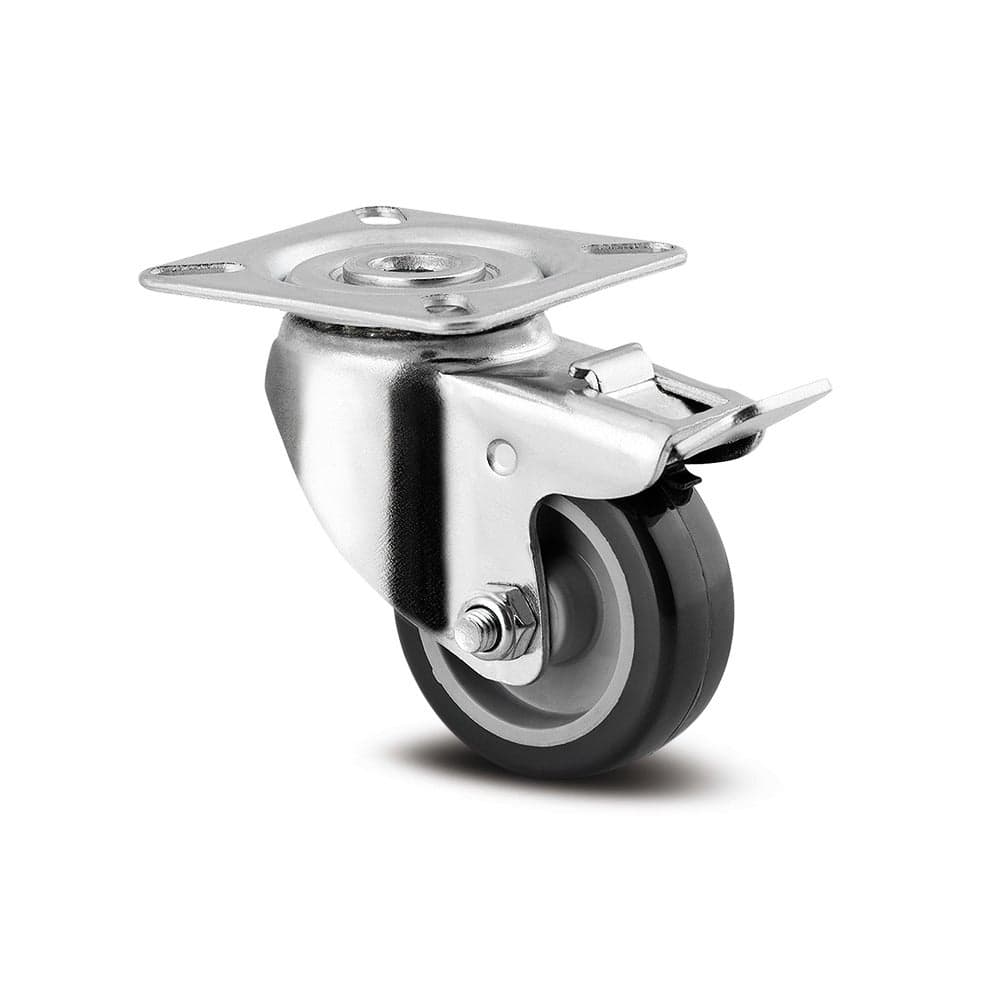

Swivel castor with wheel brake 50 mm
Ø50mm
80kg
swivel_brake
Technical Specifications
Core attributes
TypeSwivel castor with wheel brake
Overall width44 mm
Load capacity at 3 km/h40 kg
Load capacity Static80 kg
Overall height70 mm
Temperature range (Maximum)60 °C
Temperature range (Minimum)-20 °C
Overall weight0.21 kg
Electric conductive✘
Stainless✘
Fitting
Fitting typeSquare plate
Plate hole diameter6.3 mm
Plate hole length (Maximum)48 mm
Plate hole length (Minimum)38 mm
Plate hole width (Maximum)48 mm
Plate hole width (Minimum)38 mm
Plate length60 mm
Plate width60 mm
Housing
ColourBlue passivated
Fork shapeBroad
Material forkSteel sheet, light
Swivel bearingTwo ball races
Dome diameter41 mm
Swivel interference128 mm
Offset25 mm
Swivel radius64 mm
Wheel
Hardness of tread (A)91 Shore A
Hardness of tread (D)40 Shore D
Body materialPolypropylene
Tread materialPolyurethane, injected
Tread width19 mm
Diameter50 mm
Body width19 mm
ThreadguardsWithout threadguard
BearingPlain bearing
Wheel colorSilver grey (RAL7001)
